Mast system // Mast system on trailer

Mast System on trailer

Representative image (AI)

001

Mobile performance with modular subassembly system and low total weight for highly mobile use in rough terrain.

Mounted on a trailer, the mast system combines modular flexibility with a lightweight design for fast, efficient deployment. Easy to transport and quick to adapt, it is built to keep operations agile in dynamic field conditions.

Light. Modular. Ready to Move.

Built for rough terrain, the system delivers reliable performance far beyond paved access routes. Its robust construction ensures mobility, stability and mission-ready capability wherever the terrain gets demanding.

Ready for Rough Terrain

A military communication tower with antennas and supporting structures on a mobile platform.

0
Set-up Time

0
Max. Survivable Wind Speed

0
Mast height

0
top load mast head

002
Up to 15m height:
Mast systems on trailer

FTM 27/5 TITAAN

Mast height: 6,4 and 7 m
Assembly time: 5 min
Mast point payload: 620 kg
Max. Survivable Wind Speed: 130 km/h

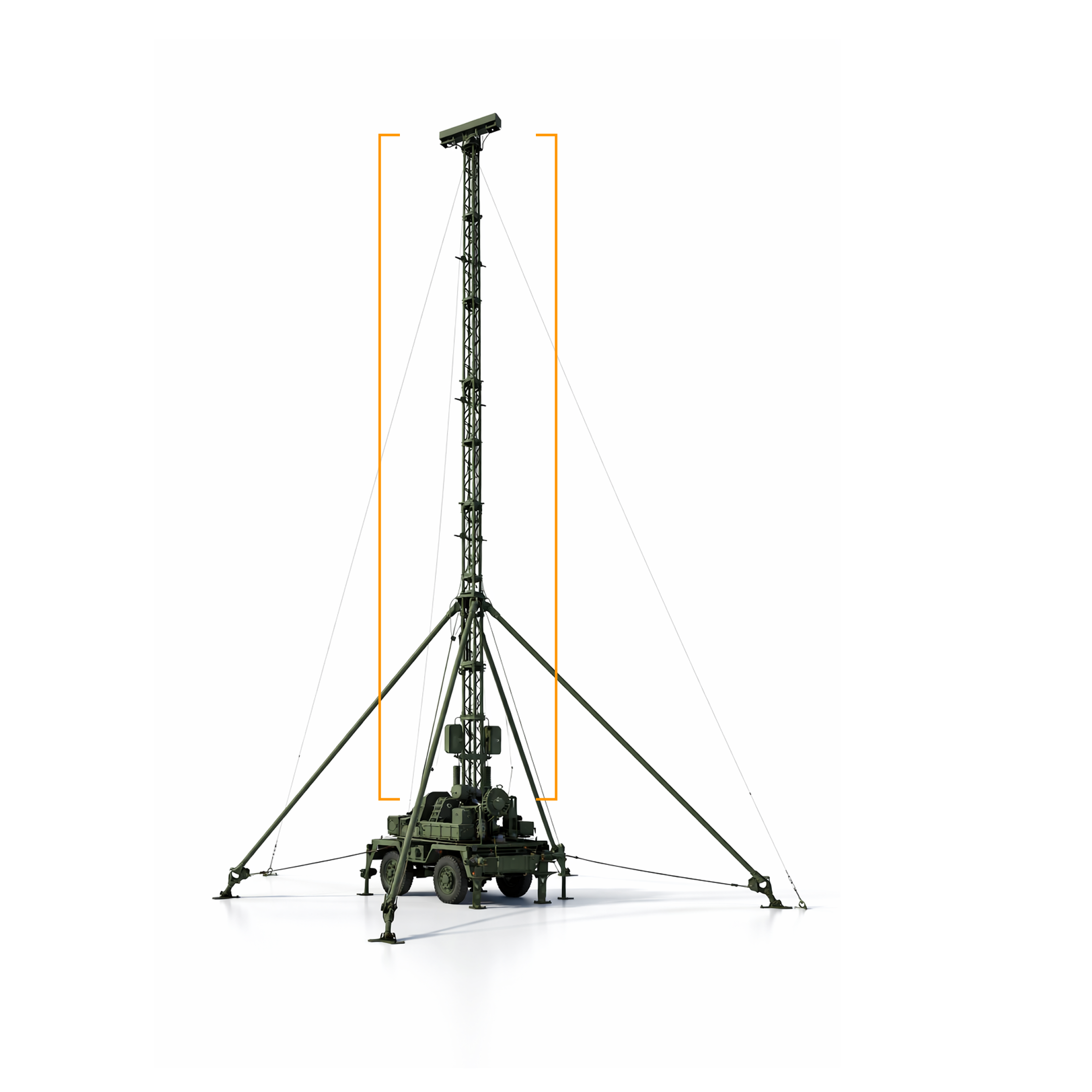

FTM 20/4 Radar

Mast height: 10-20 m
Assembly time: 16 min
Mast point payload: 150 kg
Max. Survivable Wind Speed: 120 km/h

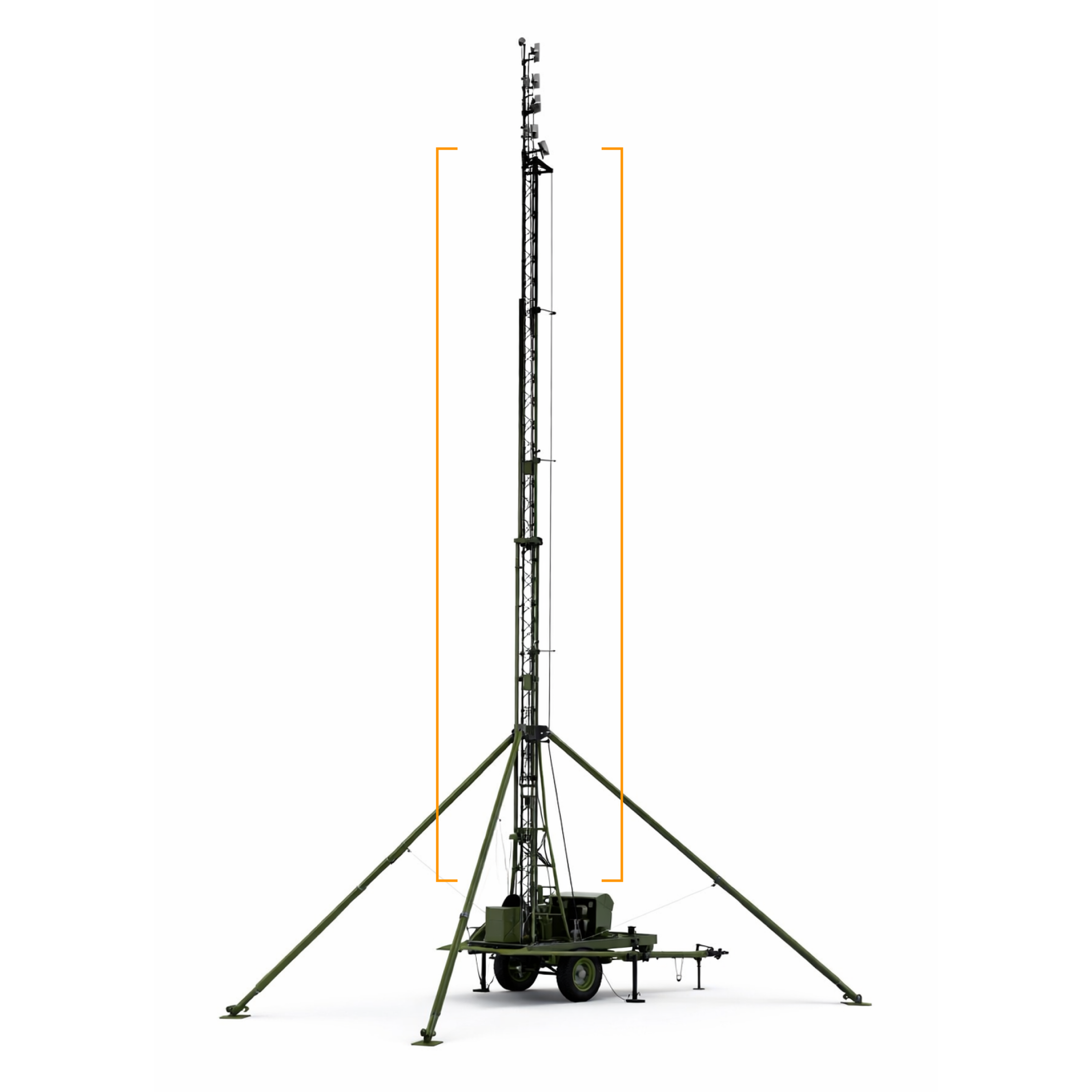

FTM 23/5 Auto KO 90

Mast height: 6,4 and 7 m
Assembly time: 5 min
Mast point payload: 620 kg
Max. Survivable Wind Speed: 130 km

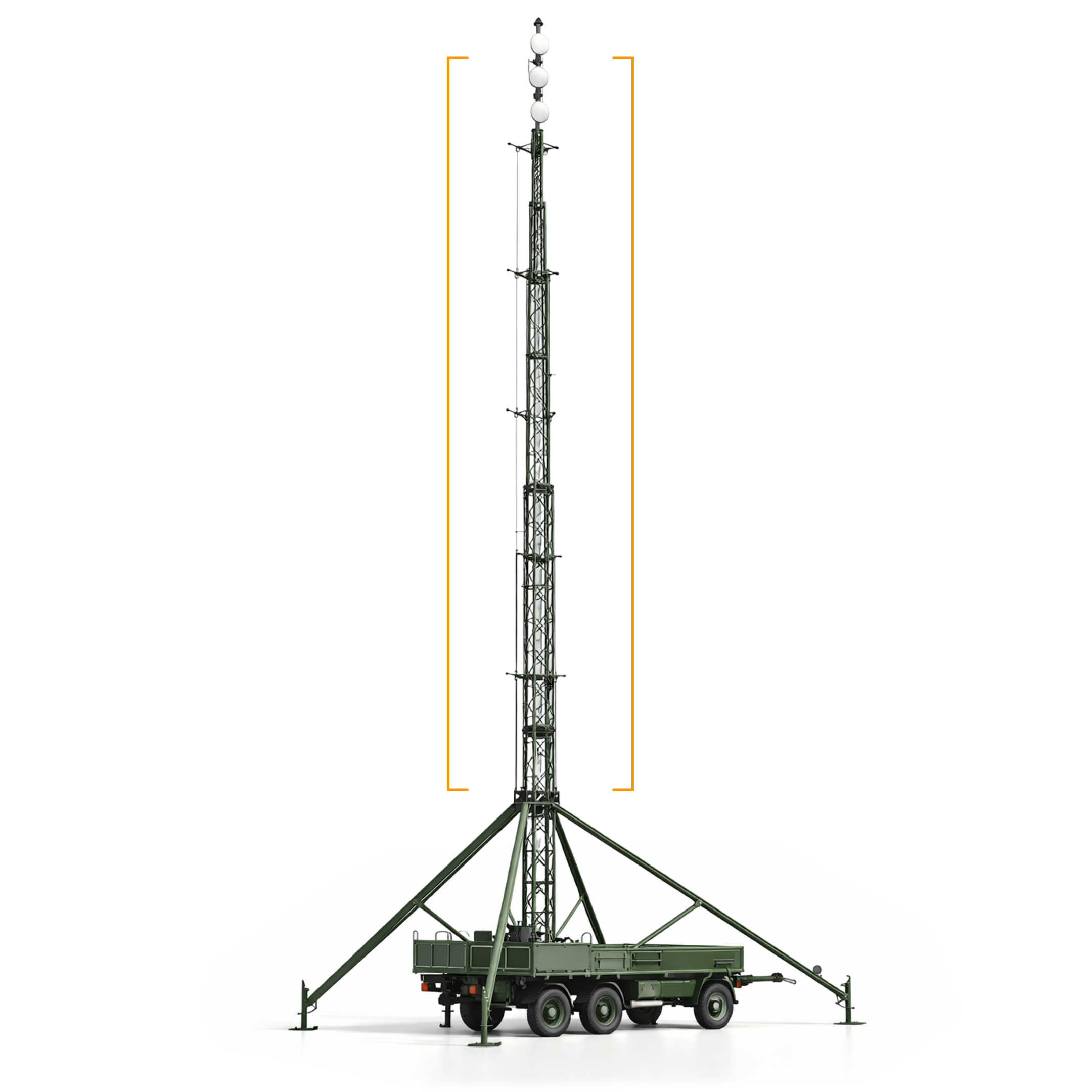

FTM 36/9

Mast height: 12 - 36 m
Assembly time: 30 min
Mast point payload: 700 kg
Max. Survivable Wind Speed: 144 km/h

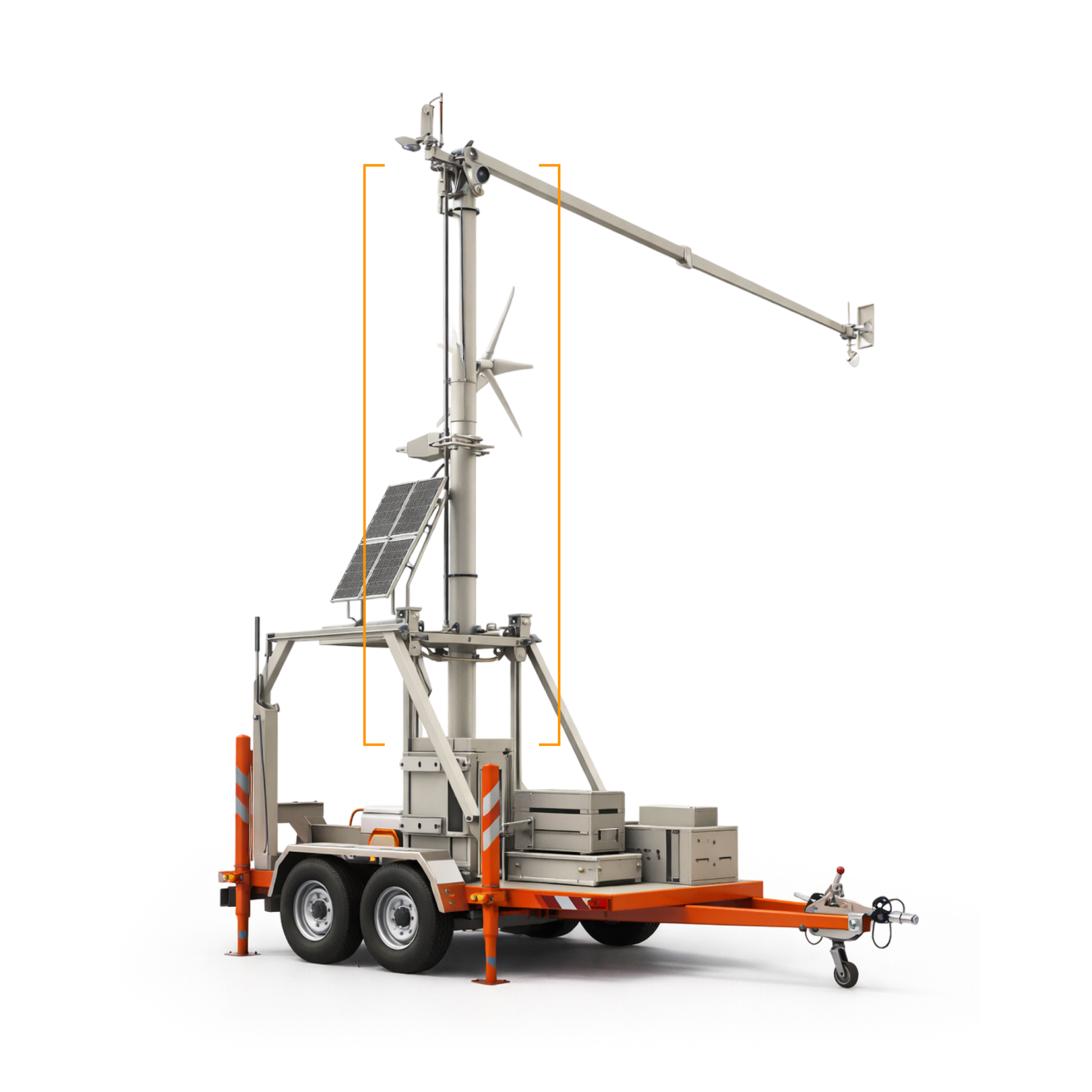

FTM 13/3 Toll Collect

Mast height: 6,4 and 7 m
Assembly time: 5 min
Mast point payload: 620 kg
Max. Survivable Wind Speed: 130 km

003

Download Documents

Download the information sheet.

Mast system on trailer

↓ DOWNLOAD

004

Certificates

At SMAG, only high-quality products are manufactured — tested, proven, and safe for use. Regular training sessions and the issuance of certifications ensure that all our products are ready to meet even the most demanding challenges.

ISO 9001, 14001; 45001

Occupational Health and safety management system

↓ DOWNLOAD

Environmental Management System

↓ DOWNLOAD

Quality Management System

↓ DOWNLOAD

002

Use Cases

SMAG mast systems elevate mission-critical sensors, antennas and communication assets – providing mobile, precise and robust platforms for radar, EW, and surveillance operations anywhere in the world.

003 communication

Establish a stable connection anywhere, anytime and take advantage of modern, fast-paced operational setups with mast solutions designed for mobility, accuracy and ease of use.

open use case

002 Ground-Based Air Defence

Precision and speed meet unmatched elevation: Let your radar and sensor systems engage earlier, further out and more precisely, even in rough or forested terrain.

open use case

001 Drone defence

Reliable, rapidly deployed
mobile antenna masts for
your drone defence systems.

open use case

004 support for radar

Set up superior passive radar capabilities in minutes: with masts that are vibration-resistant even in the roughest conditions for better accuracy, with more elevation for range.

open use case

005 Electronic Warfare

Mobile, self-supported, heavy-duty masts let you deploy electronic countermeasures with ease, operational freedom and certainty—when it’s needed, where it’s needed.

open use case

006 Surveillance/Border Control

SMAG masts position EO/IR cameras and communication systems at optimal heights in ideal positions, regardless of terrain, linking sensors, command and response teams seamlessly.

open use case

See all Use cases

006

Mast Systems

Green armored military vehicle with six large wheels and a turret-mounted weapon

Tailored and mission-ready in minutes, our guy-wire-free, precision-engineered mast systems are deployed wherever secure communications are essential to protect infrastructure and save lives.

Mast system
on vehicle

Lowest profile.
Minimal weight.
Full vehicle performance.

More information

The image shows the underside of a military green shipping container with side doors, handles, and a small window or panel

Mast system
in container

Autonomous ISO-container system.
Optimal space management.
For highly complex mast tops.
Payload up to 500 kg.

More information

Military missile launcher truck in camouflage green color with multiple wheels and missile launching equipment on its back, isolated on black background.

Mast system
on truck

Fully automated.
Mission-ready in under 10 minutes.
Up to 40m.

More information
