Mast system // on truck

SMAG Mast System on truck

Representative image

001

High-tech performance with fully automatically operation and shortest set-up times <10 minutes.

Fully Automated. Fully Ready.

Mounted on the truck, the mast system combines full automation with high mobility for fast, effortless deployment in the field. It is built to move quickly, operate reliably and deliver immediate mission capability wherever it is needed.

Under 10 Minutes. Up to 40 Metres.

From arrival to operational readiness in less than 10 minutes, the system is designed for rapid response under pressure. With mast heights of up to 40 m, it delivers maximum reach, strong field presence and mission-ready performance at scale.

0
Set-up Time
0
Max. Survivable
Wind Speed
0
Mast height
0
top load mast head

<em>002</em>
Up to 40m height:
Mast systems on truck

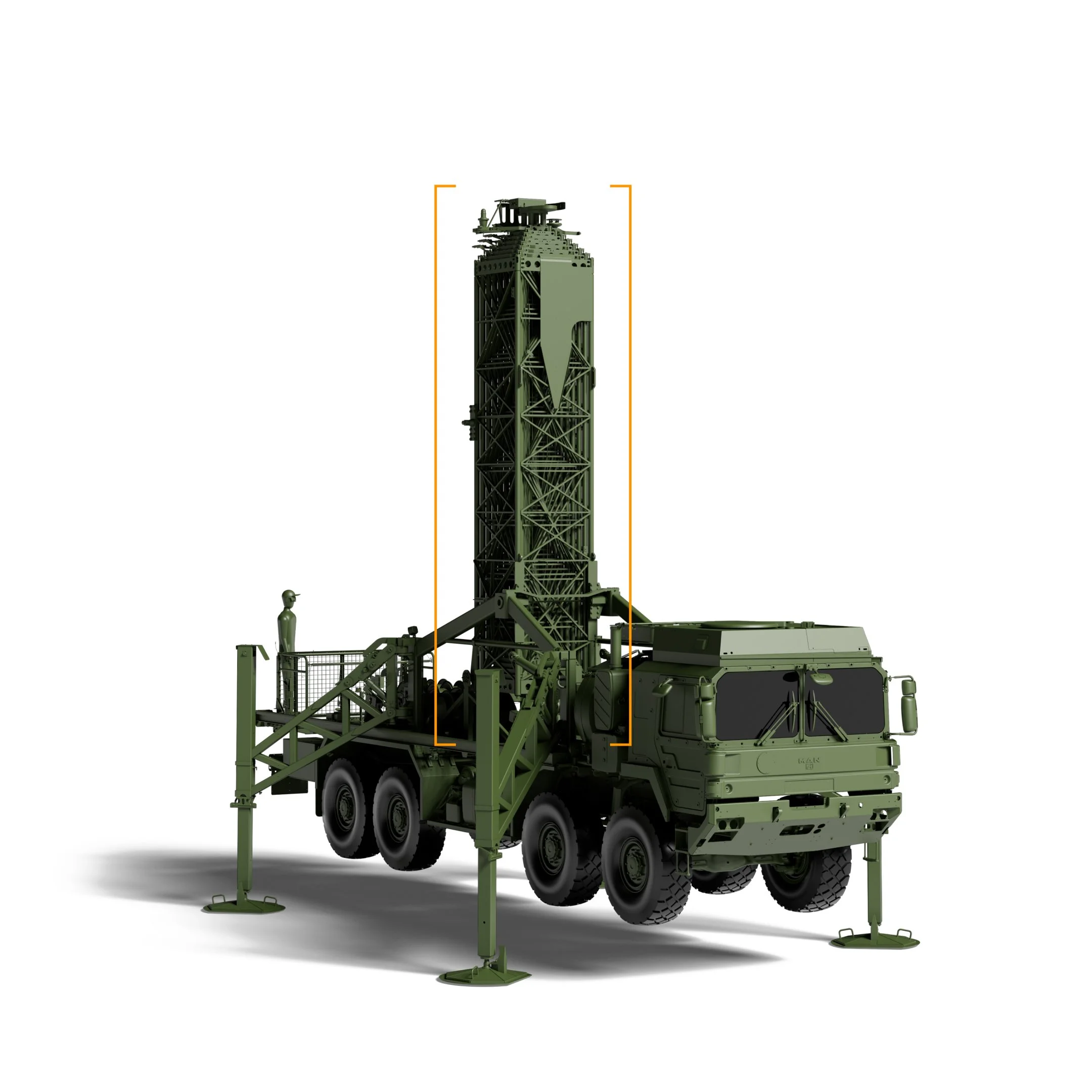

  • <br>FTH 40/9

    Mast height: 10-40 m

    Assembly time: <10 min

    Mast point payload: 600 kg

    Max. Survivable Wind Speed: 120 km/h

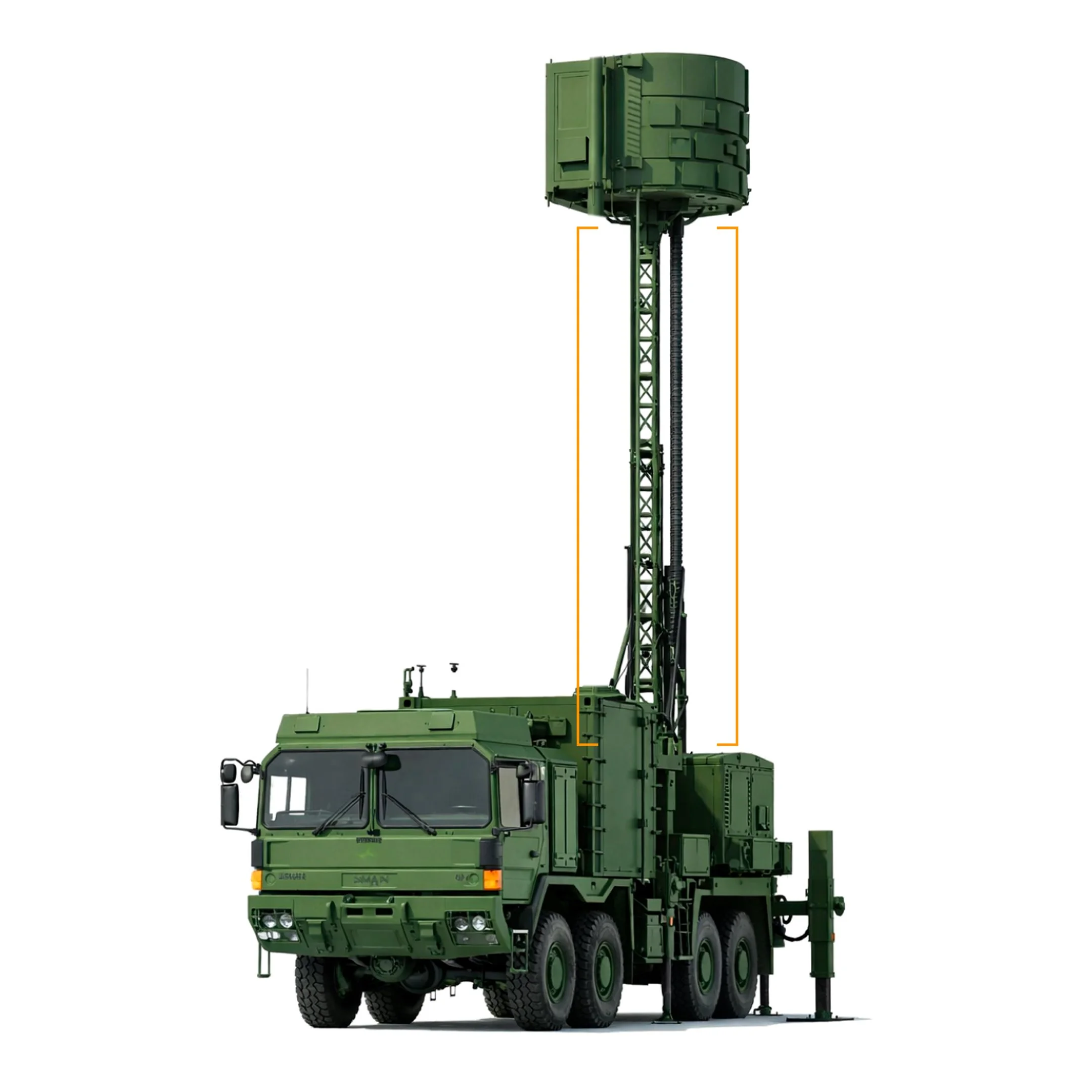

  • FTM 8/3 <br>Aselsan

    Mast height: 1,5-8 m

    Assembly time: 5 min

    Mast point payload: 620 kg

    Max. Survivable Wind Speed: 130 km

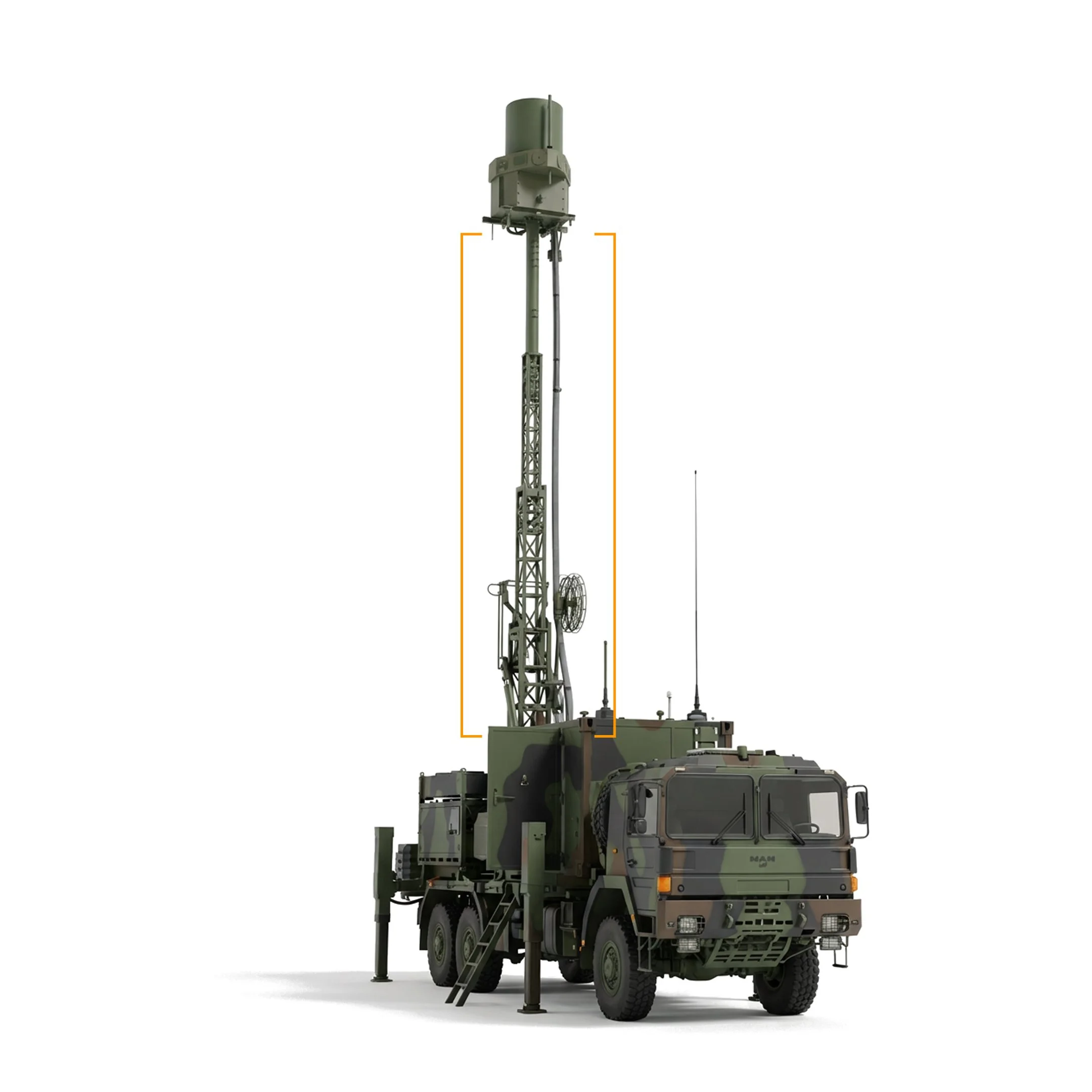

  • <br>FTM 10/4

    Mast height: 10-20 m

    Assembly time: 16 min

    Mast point payload: 150 kg

    Max. Survivable Wind Speed: 120 km/h

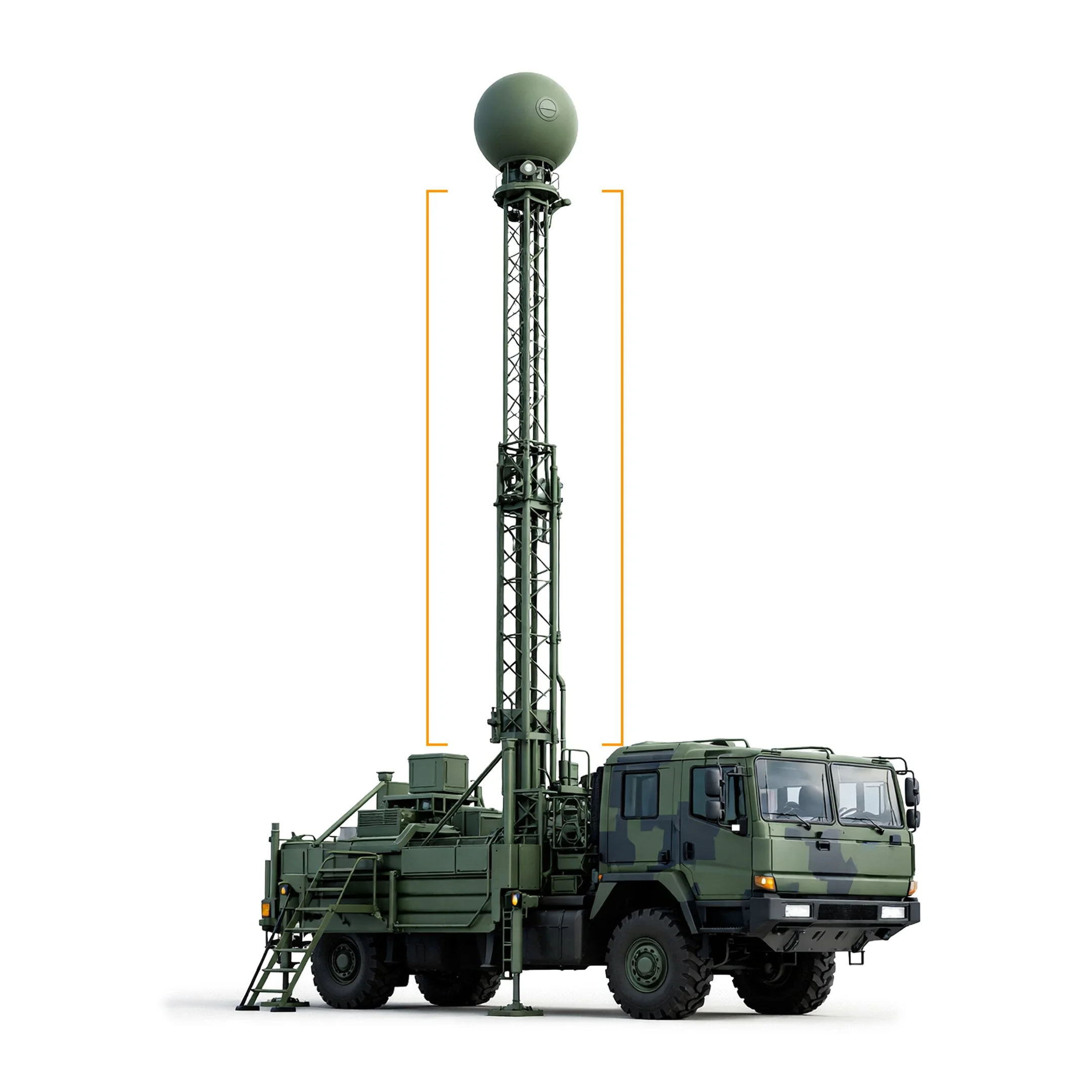

  • FTM 11/2 <br>KZO

    Mast height: 7,9-11,2 m

    Assembly time: 12 min

    Mast point payload: 2000 kg

    Max. Survivable Wind Speed: 140 km/h

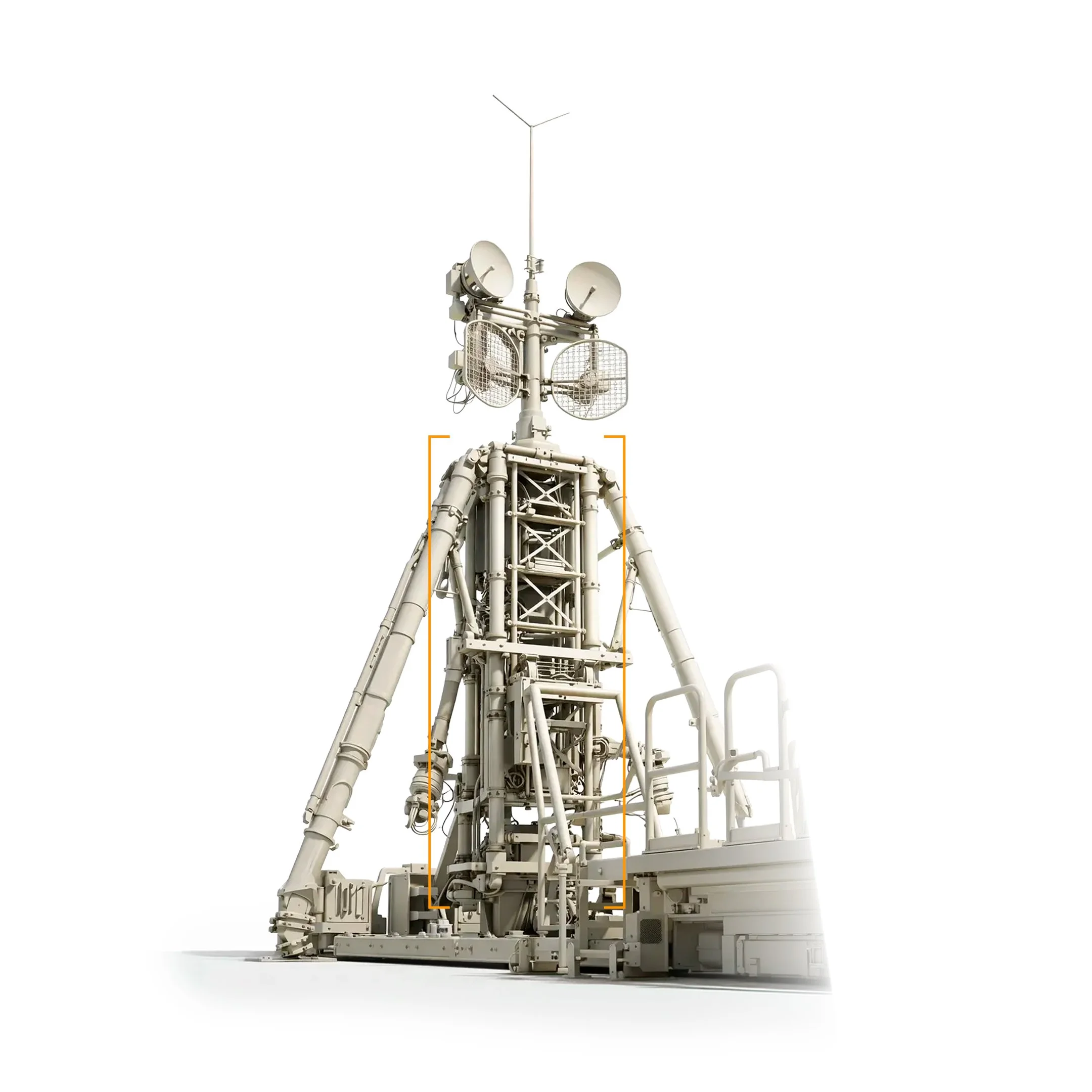

  • <br>FTM 25/7

    Mast height: 6-25 m

    Assembly time: 20 min

    Mast point payload: 650 kg

    Max. Survivable Wind Speed: 160 km/h

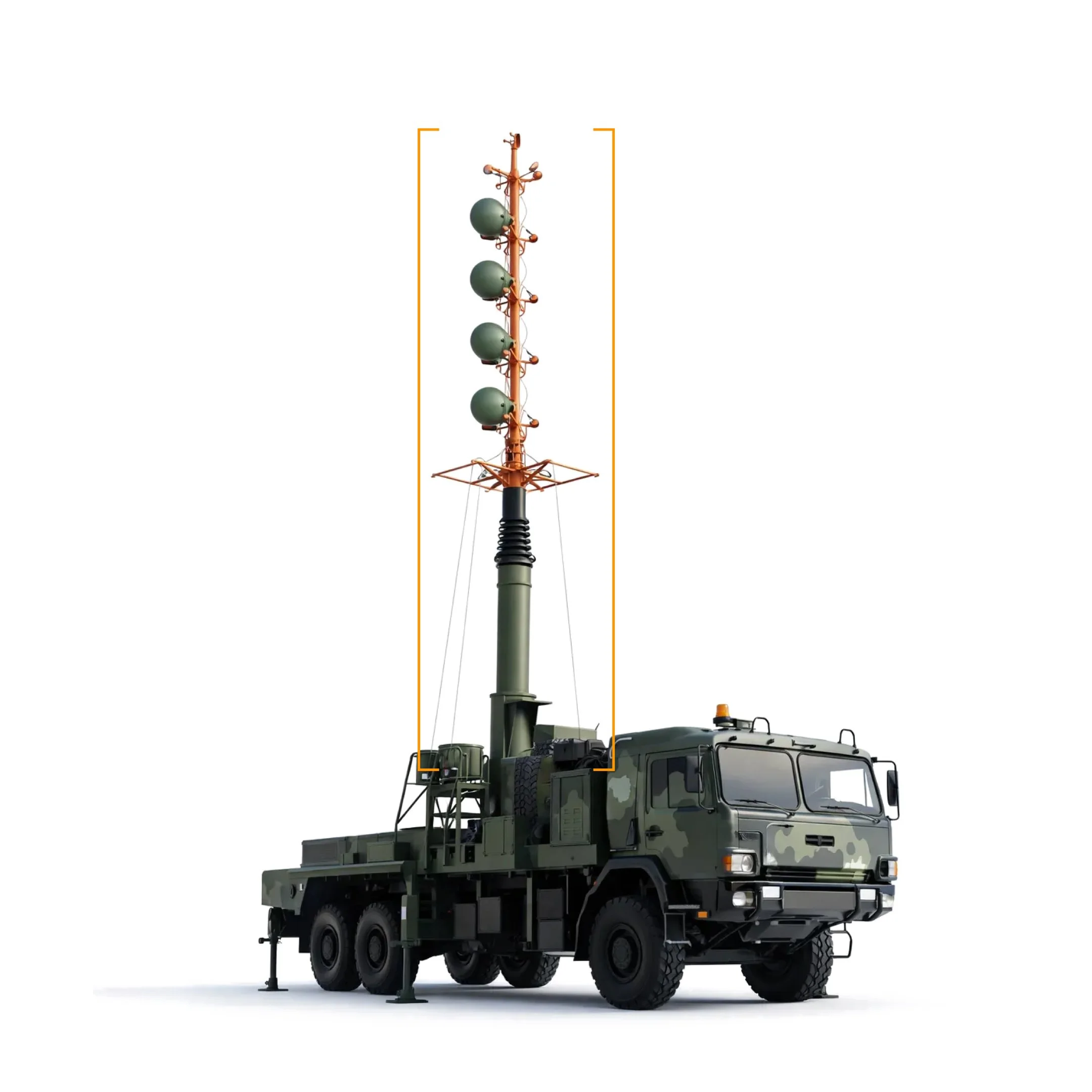

  • FTH 34/8 <br>AMA

    Mast height: 12-34 m

    Assembly time: 16 min

    Mast point payload: 900 kg

    Max. Survivable Wind Speed: 130 km/h

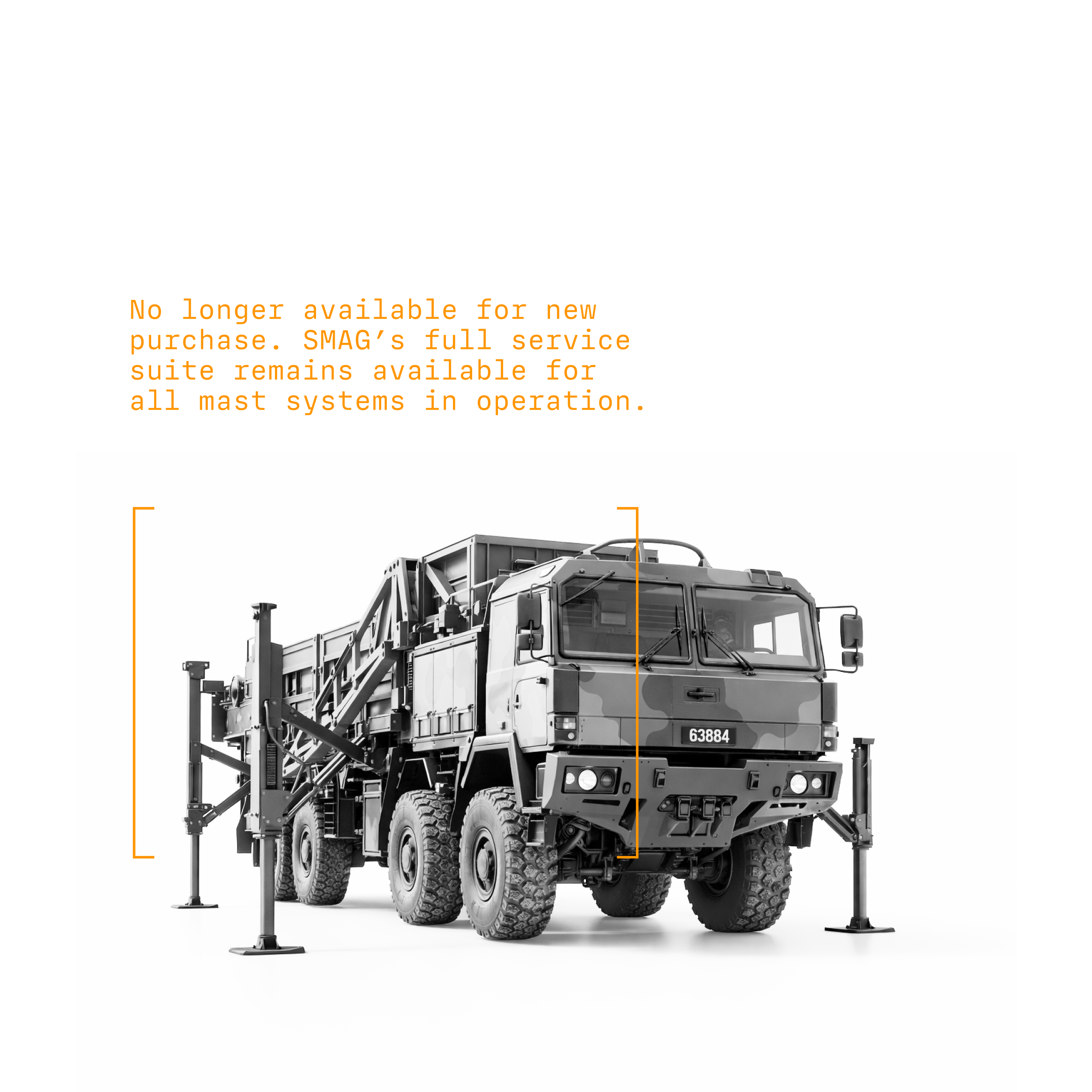

  • FTH 34/5

    FTH 34/5 <br>Lirka

    Mast height: 10-34 m

    Assembly time: 17 min

    Mast point payload: 900 kg

    Max. Survivable Wind Speed: 175 km/h

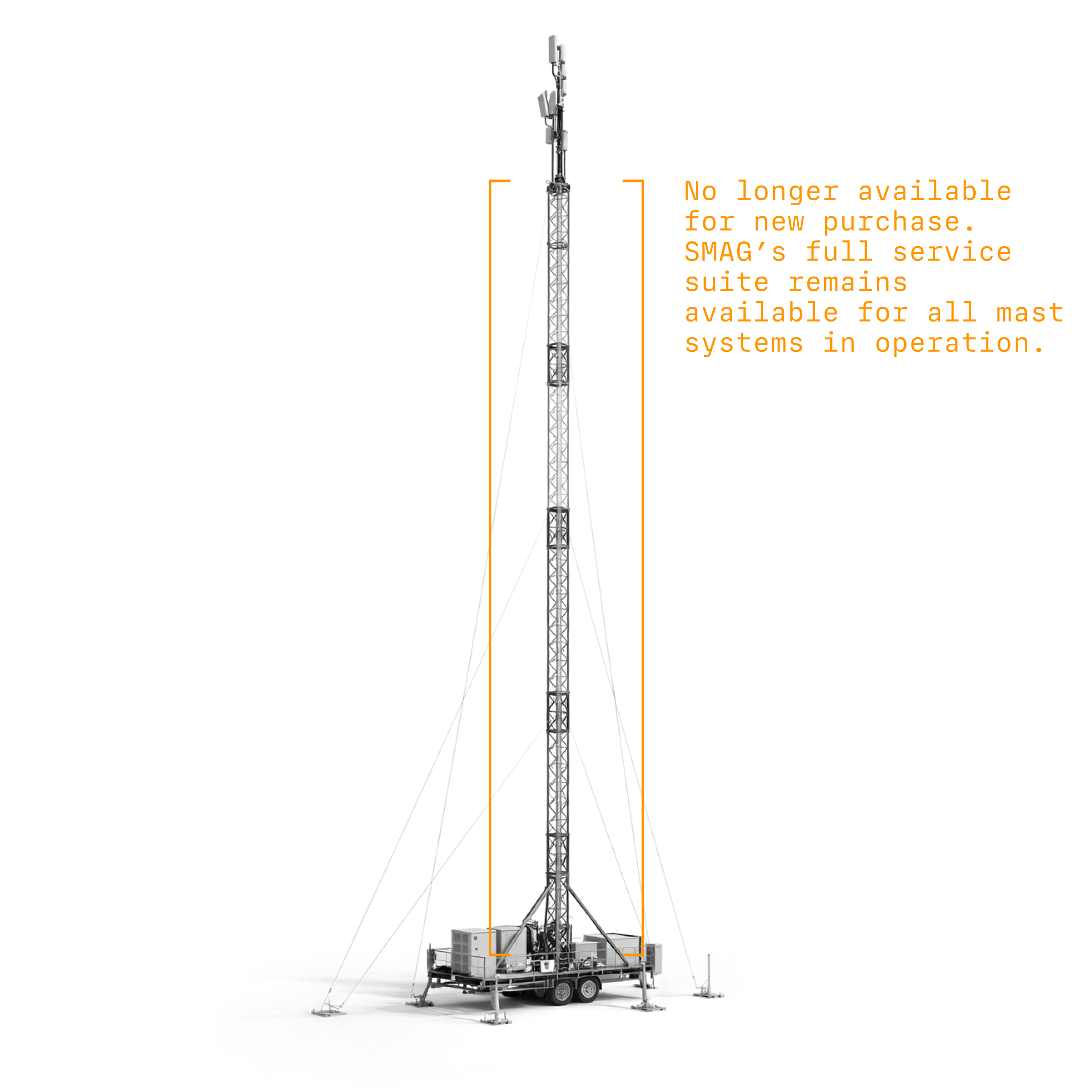

  • FTH 40/4 <br>Telekom

    Mast height: 18-40 m

    Assembly time: 20 min

    Mast point payload: 500 kg

    Max. Survivable Wind Speed: 150 km/h

003

Download Documents

Download all technical informations about the mast system on truck FTM 11/2 KZO

FTM 11/2 KZO

FTM 40/9

Download all technical informations about the mast system on truck FTM 40/9

004

Certificates

At SMAG, only high-quality products are manufactured — tested, proven, and safe for use. Regular training sessions and the issuance of certifications ensure that all our products are ready to meet even the most demanding challenges.

ISO 9001, 14001; 45001

Occupational Health and safety management system

Environmental Management System

Quality Management System

005

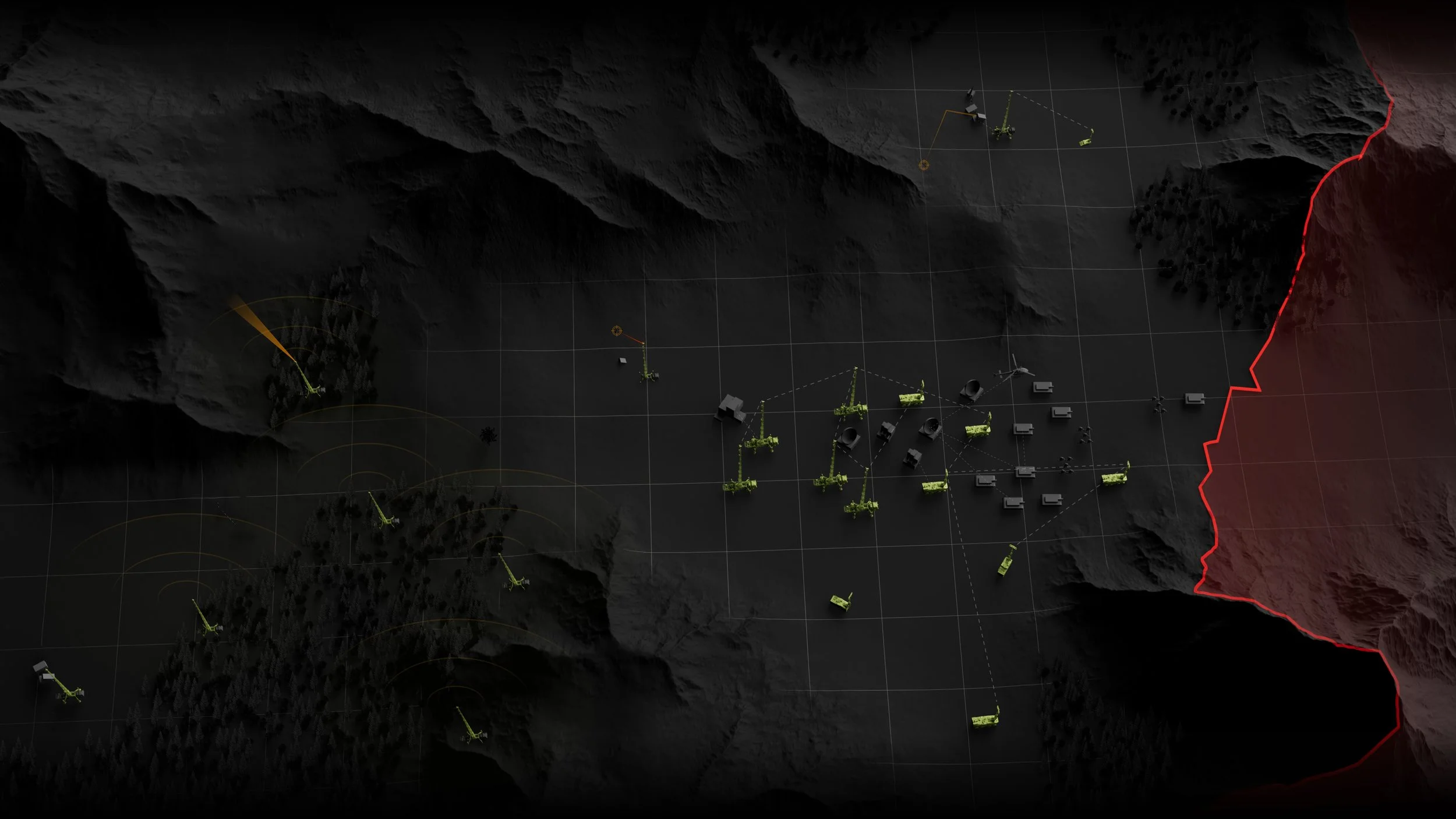

Use Cases

SMAG mast systems elevate mission-critical sensors, antennas and communication assets – providing mobile, precise and robust platforms for radar, EW, and surveillance operations anywhere in the world.

003 communication

Establish a stable connection anywhere, anytime and take advantage of modern, fast-paced operational setups with mast solutions designed for mobility, accuracy and ease of use.

open use case

002 Ground-Based Air Defence

Precision and speed meet unmatched elevation: Let your radar and sensor systems engage earlier, further out and more precisely, even in rough or forested terrain.

open use case

001 Drone defence

Reliable, rapidly deployed
mobile antenna masts for
your drone defence systems.

open use case

004 support for radar

Set up superior passive radar capabilities in minutes: with masts that are vibration-resistant even in the roughest conditions for better accuracy, with more elevation for range.

open use case

005 Electronic Warfare

Mobile, self-supported, heavy-duty masts let you deploy electronic countermeasures with ease, operational freedom and certainty—when it’s needed, where it’s needed.

coming soon

006 Surveillance/Border Control

SMAG masts position EO/IR cameras and communication systems at optimal heights in ideal positions, regardless of terrain, linking sensors, command and response teams seamlessly.

coming soon

006

Mast Systems

Tailored and mission-ready in minutes, our guy-wire-free, precision-engineered mast systems are deployed wherever secure communications are essential to protect infrastructure and save lives.

Mast system
on vehicle

Lowest profile.
Minimal weight.
Full vehicle performance.

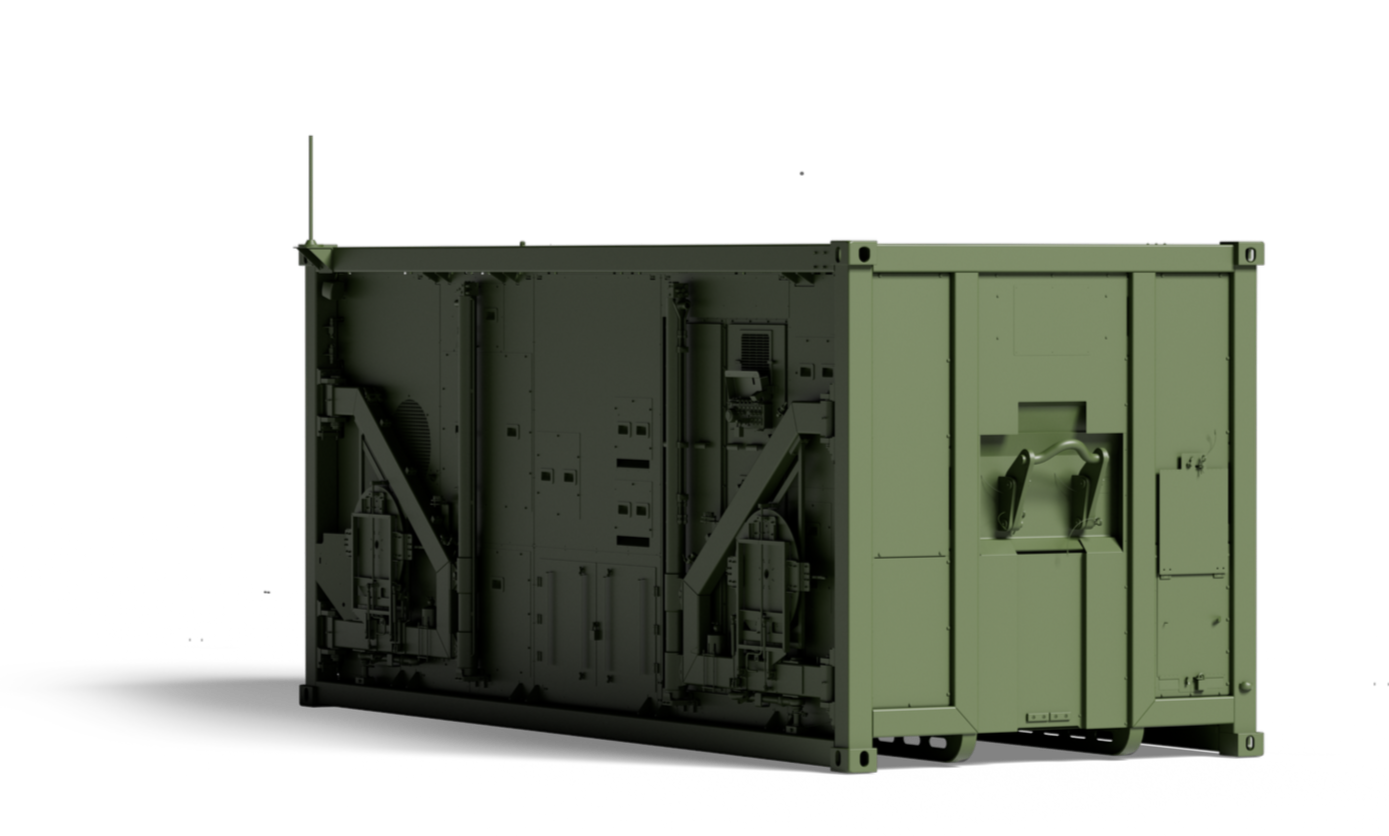

Mast system
in container

Autonomous ISO-container system.
Optimal space management.
For highly complex mast tops.
Payload up to 500 kg.

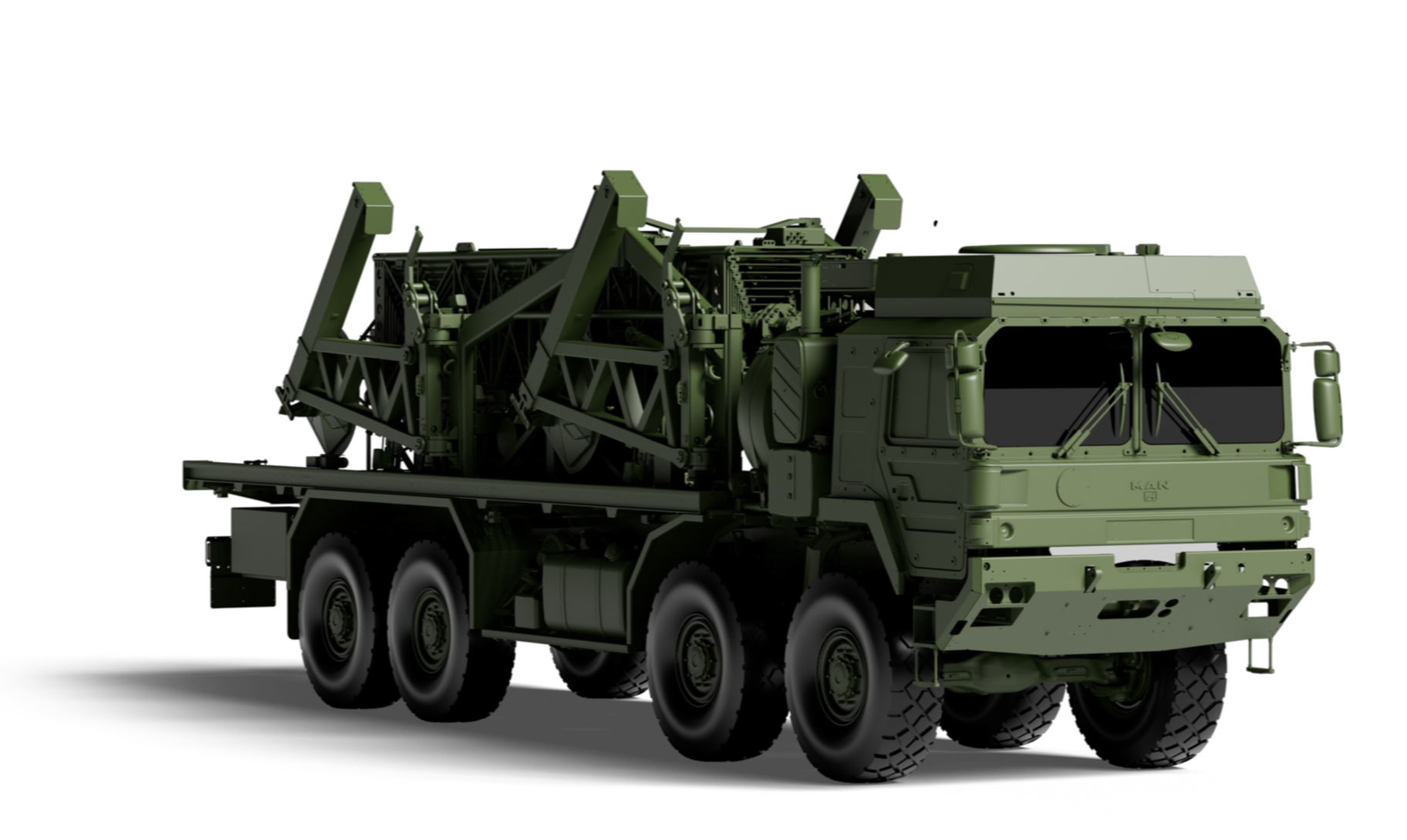

Mast system
on truck

Fully automated.
Mission-ready in under 10 minutes.
Up to 40m.

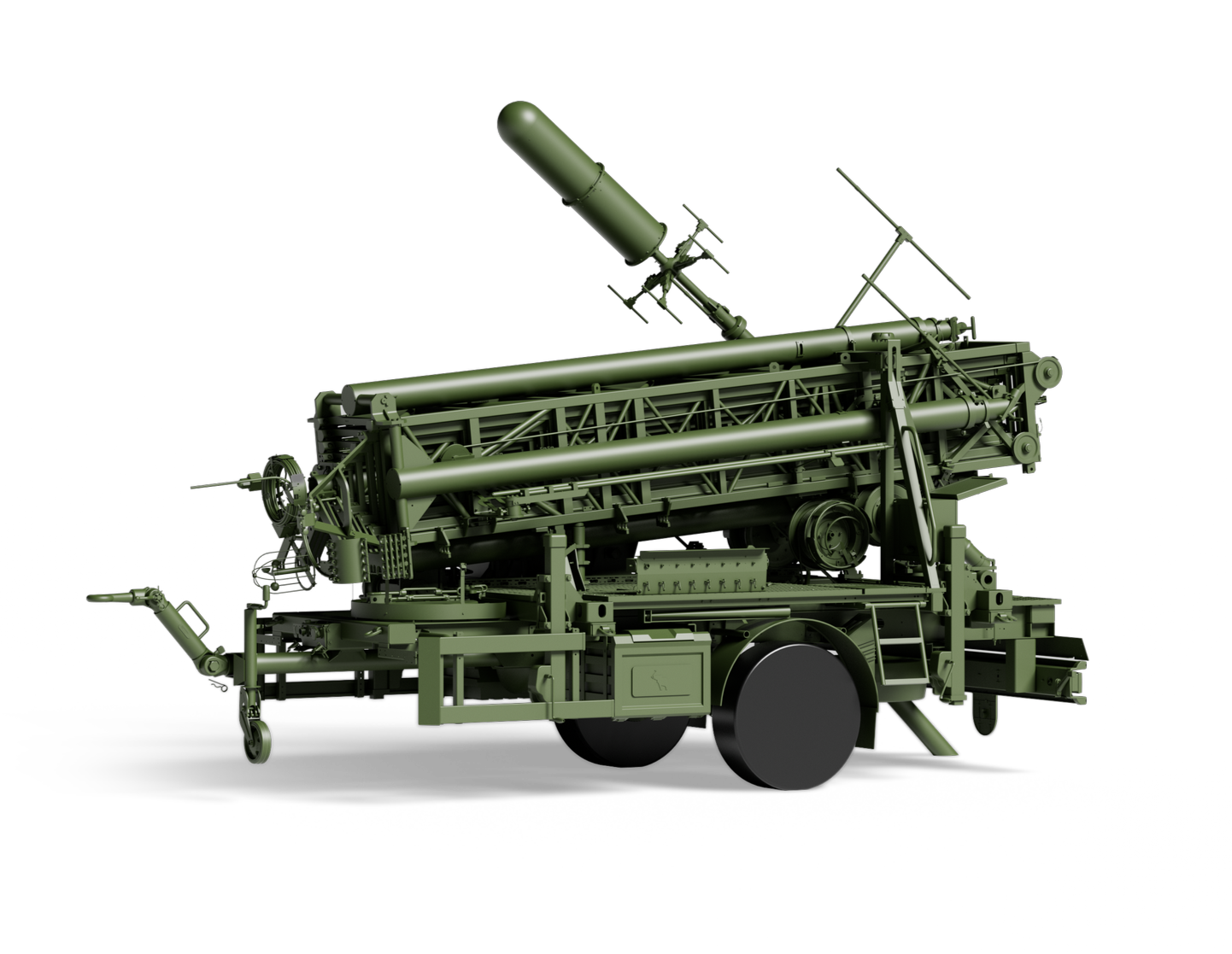

Mast system
on trailer

Modular.
Lightweight.
Built for rough terrain.
