Mast system // Mast System on vehicle

Mast System on vehicle

Representative image (AI)

001

Compact performance with lowest overall height and low total weight without influencing the special vehicle characteristics.

Low-Profile Integration

The mast system is engineered for direct vehicle integration, combining an exceptionally low profile with minimal added weight. Its compact design enables seamless installation without compromising the vehicle concept.

Full Vehicle Performance

Despite its lightweight footprint, the system preserves full vehicle performance. Mobility, handling and operational capability remain fully intact — delivering maximum functionality with no unnecessary trade-offs.

A military vehicle with a tall radio tower mounted on it, equipped with multiple large antennas at the top.

0
Set-up Time

0
Max. Survivable Wind Speed

0
Mast height

0
top load mast head

002
Up to 15m height:
Mast systems on vehicle

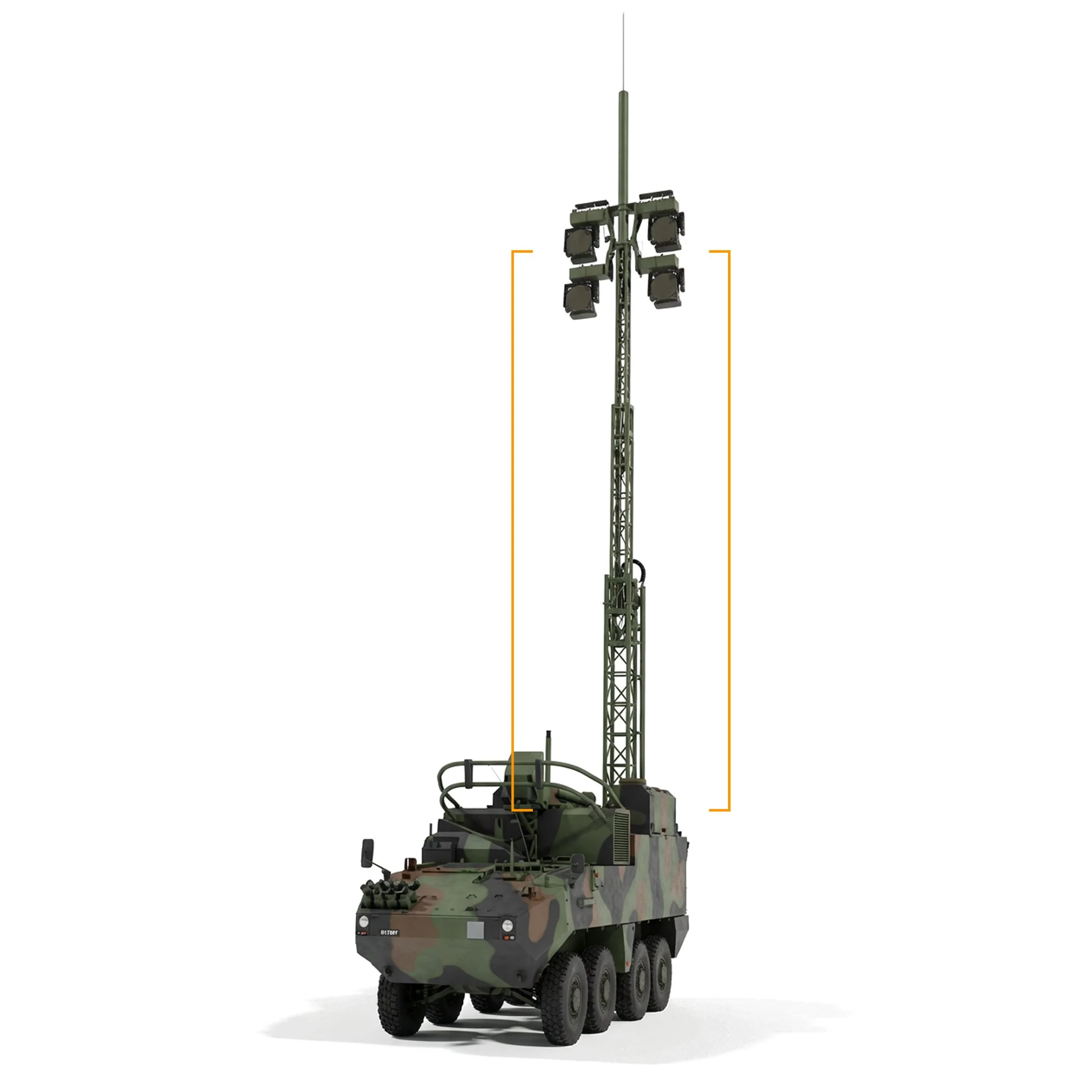

FTM 15/4 KOMPAK

Mast height: 5-15 m
Assembly time: 4 min
Mast point payload: 260 kg
Max. Survivable Wind Speed: 120 km/h

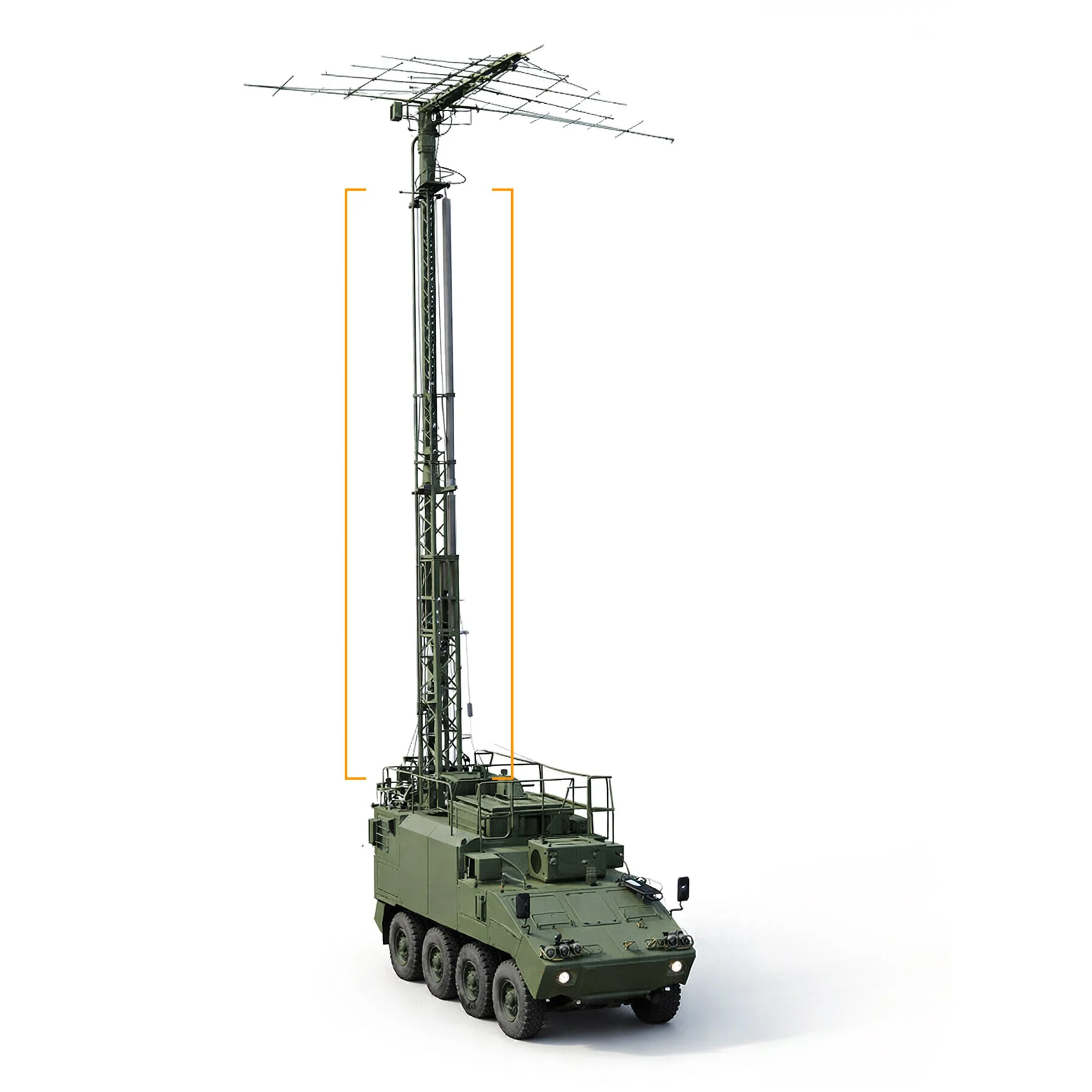

FTM 9/3

Mast height: 5-9 m
Assembly time: 3 min
Mast point payload: 200 kg
Max. Survivable Wind Speed: 120 km/h
FTM 14/3

Mast height: 5-14 m
Assembly time: 4 min
Mast point payload: 300 kg
Max. Survivable Wind Speed: 100 km/h

003

Download Documents

Download all technical informations about the mast system on vehicle

Mast system on vehicle

↓ DOWNLOAD

004

Certificates

At SMAG, only high-quality products are manufactured — tested, proven, and safe for use. Regular training sessions and the issuance of certifications ensure that all our products are ready to meet even the most demanding challenges.

ISO 9001, 14001; 45001

Occupational Health and safety management system

↓ DOWNLOAD

Environmental Management System

↓ DOWNLOAD

Quality Management System

↓ DOWNLOAD

002

Use Cases

SMAG mast systems elevate mission-critical sensors, antennas and communication assets – providing mobile, precise and robust platforms for radar, EW, and surveillance operations anywhere in the world.

003 communication

Establish a stable connection anywhere, anytime and take advantage of modern, fast-paced operational setups with mast solutions designed for mobility, accuracy and ease of use.

open use case

002 Ground-Based Air Defence

Precision and speed meet unmatched elevation: Let your radar and sensor systems engage earlier, further out and more precisely, even in rough or forested terrain.

open use case

001 Drone defence

Reliable, rapidly deployed
mobile antenna masts for
your drone defence systems.

open use case

004 support for radar

Set up superior passive radar capabilities in minutes: with masts that are vibration-resistant even in the roughest conditions for better accuracy, with more elevation for range.

open use case

005 Electronic Warfare

Mobile, self-supported, heavy-duty masts let you deploy electronic countermeasures with ease, operational freedom and certainty—when it’s needed, where it’s needed.

open use case

006 Surveillance/Border Control

SMAG masts position EO/IR cameras and communication systems at optimal heights in ideal positions, regardless of terrain, linking sensors, command and response teams seamlessly.

open use case

See all Use cases

006

Mast Systems

A military armored vehicle, painted in green, with large wheels and a mounted missile launcher on top.

Tailored and mission-ready in minutes, our guy-wire-free, precision-engineered mast systems are deployed wherever secure communications are essential to protect infrastructure and save lives.
